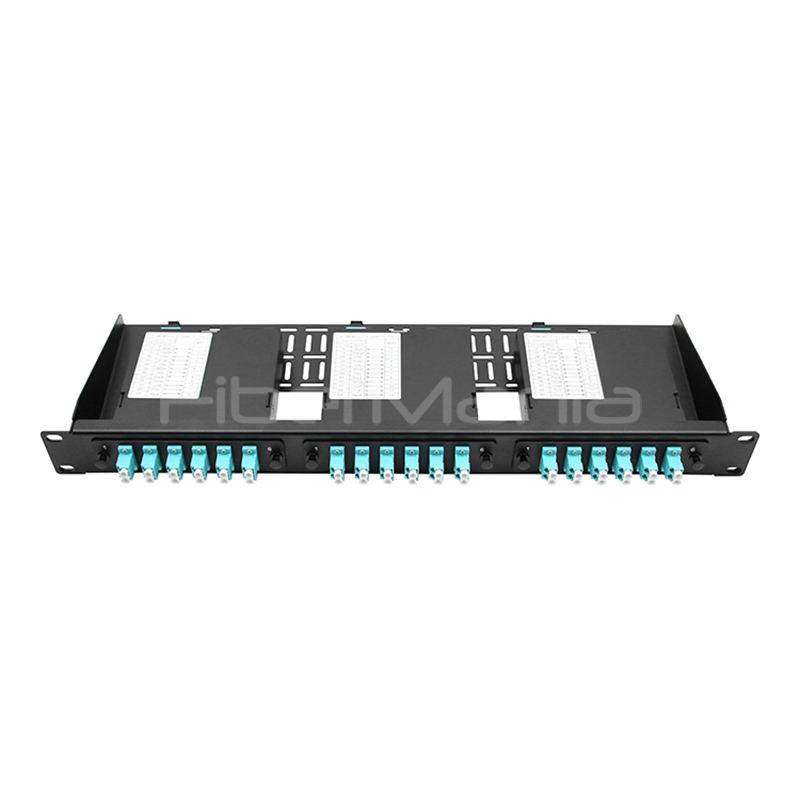

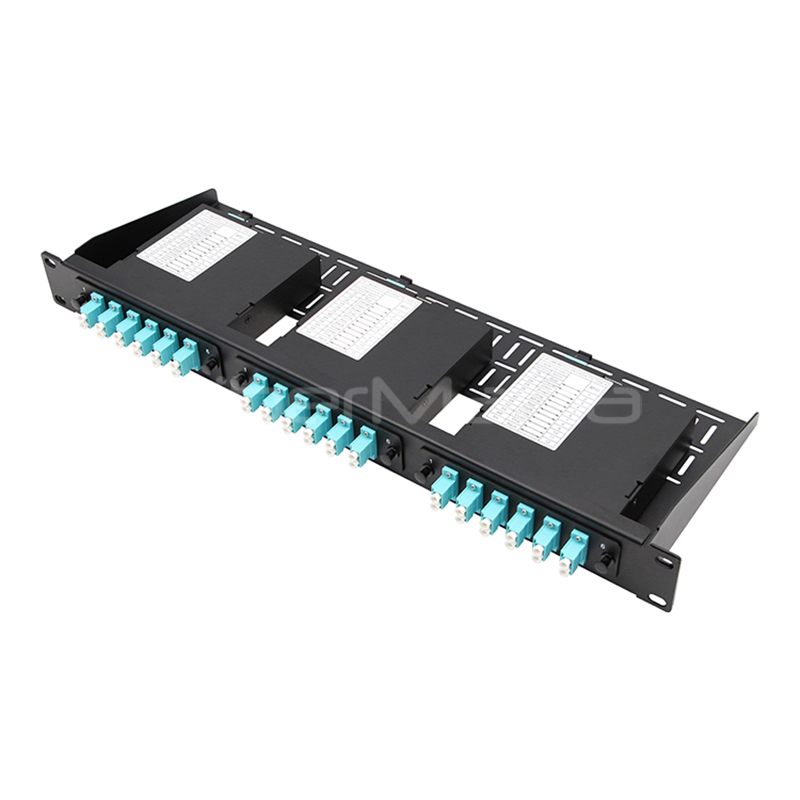

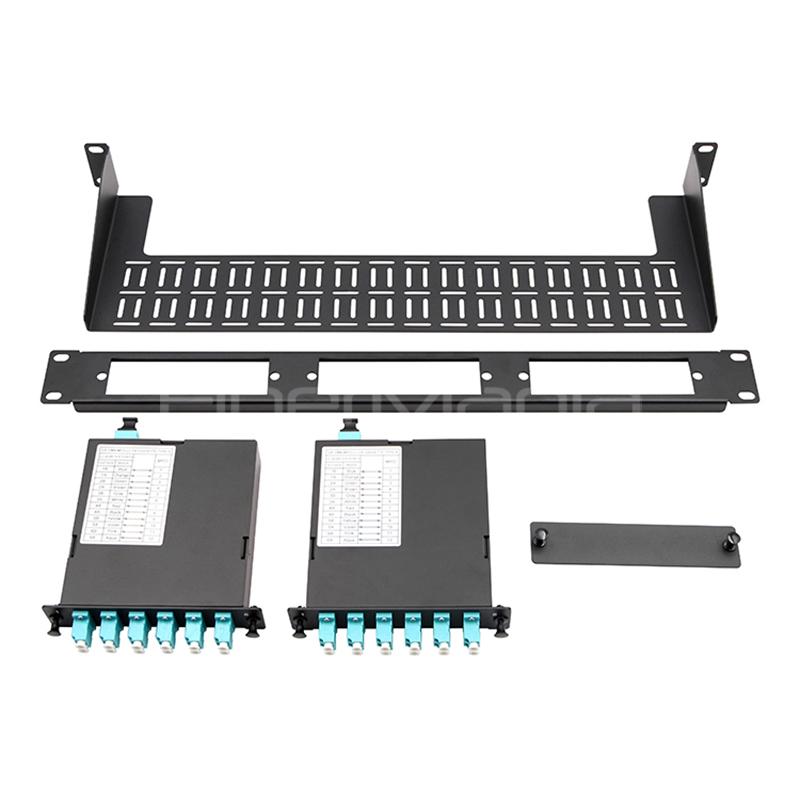

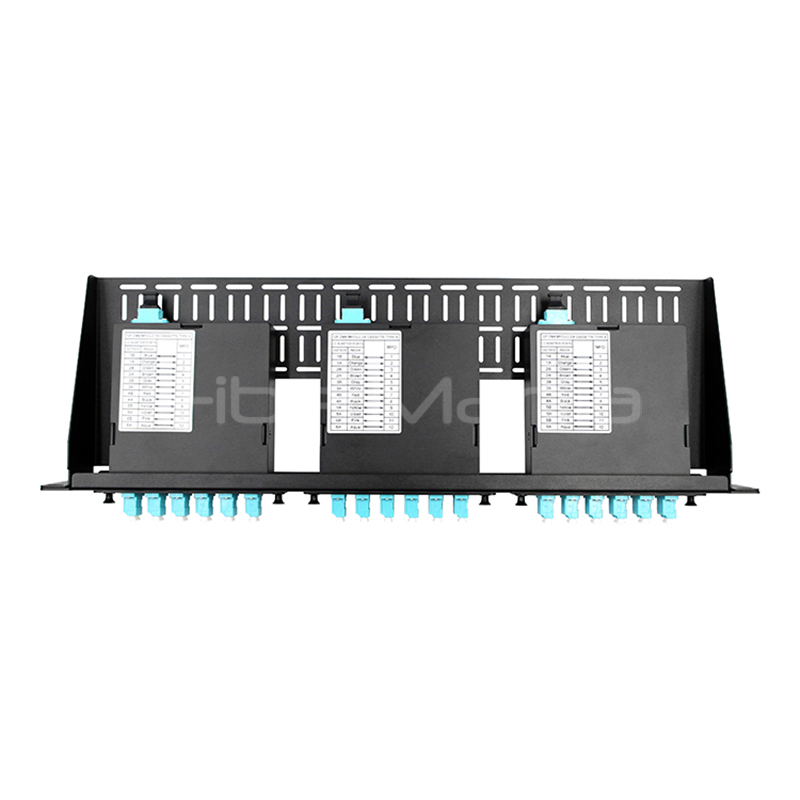

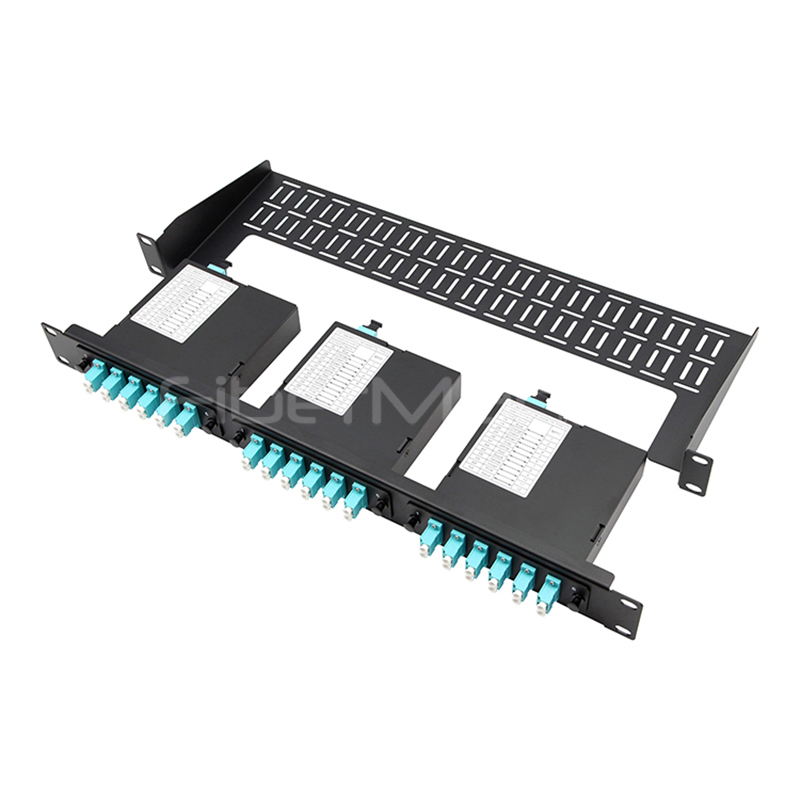

19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter
19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter 19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter 19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter 19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter 19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter
Kontakt

19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter

Min Bestellmenge : 2 Preis : 19.9
Zertifizierung: ISO, RoHS Dokument: Produktbroschüre PDF

Detailinformationen
Faserzahl: Max. 288 Fasern Material: 1,2 mm SPCC (schwarze Beschichtung)
Fasermodus: OS2 9/125μm Frontadapter: LC Duplex
Hinterer Adapter: MTP-12-Stecker (festgesteckt) Einfügedämpfung: MTP ≤ 0,6 dB, LC ≤ 0,2 dB
Renditeverlust: MTP≥20dB, LC≥35dB Abmessungen: 432X356X45mm
Betriebstemperatur: -25 °C bis +70 °C Lagertemperatur: -25 °C bis +70 °C
Relative Luftfeuchtigkeit: ≤85 %(+30 °C) Luftdruck: 70Kpa~106Kpa
Produktionskapazität: 10.000 Stück pro Monat Farbe: Schwarz
Transportpaket: Innerer Kasten in Karton
Hervorheben:

19inch 1U MPO Patch Panel

,

36 Fibers Fiber Optical Patch Panel

,

MTP-12 Rear MPO Fiber Panel

Produkt-Beschreibung

19inch 1U 36 Fibers OM3 OM4 MPO MTP Fiber Optical Patch Panel with Cassette
The MPO-LC Type Distribution Box aligns with the network development trend of high density and high capacity. It converts MPO interface multi-channel signals to LC type interface through a modular box encapsulation structure. Designed for 19-inch standard integrated distribution boxes, network cabinets, and open frames, this patch panel features high-quality cold rolled sheet material with electrostatic spray treatment for durability and even coloring.
Key Features
  • Compatible with 19-inch standard frames
  • Supports both ribbon and single fiber configurations
  • Compact design optimizes space utilization
  • Front plate markings for easy identification and operation
  • Standardized dimensions with lightweight yet robust construction
  • Simplified management and operation
  • Modular design allows multiple module box configurations
  • Converts MPO ribbon multi-core fiber to multiple LC interfaces
Applications
  • Telecommunications subscriber loops
  • Fiber to the home (FTTH) deployments
  • LAN/WAN infrastructure
  • CATV systems
Technical Specifications
Parameter Value
Operating temperature -25ºC to +70ºC
Storage temperature -25ºC to +70ºC
Relative humidity ≤85% at +30ºC
Air pressure 70Kpa to 106Kpa
Color Black
Quality Assurance Testing
IL and RL Testing: Verifies insertion loss and return loss to ensure stable signal transmission and proper cable reach.
19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter 0
3D Interferometer Testing: Evaluates connector/ferrule apex offset, radius of curvature, and fiber height to ensure proper fiber optic line connections.
19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter 1 19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter 2
End-Face Inspection: Examines connector end faces for scratches, defects, or contamination to maintain optimal communication quality and network reliability.
Production Equipment
19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter 3 19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter 4 19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter 5 19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter 6 19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter 7
Packaging & Shipping
19inch 1U 36 Fibers MPO MTP Fiber Optical Patch Panel with Cassette and MTP-12 Rear Adapter 8
Frequently Asked Questions
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and 100% tested.
Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name onto our cable jacket with a minimum order of 1KM total cable length.
Q3: Can you do 3D interferometer test?
A: Yes, we perform 3D testing upon request, typically achieving over 90% pass rate (up to 100% when required).
Q4: What is your MOQ of your products?
A: We only enforce MOQ for special customized cable orders (1km total length minimum). Bulk cable can be stocked for urgent orders.
Q5: Are free samples available from you?
A: Yes, we provide free samples for customer projects when total cost remains under $50 USD.
