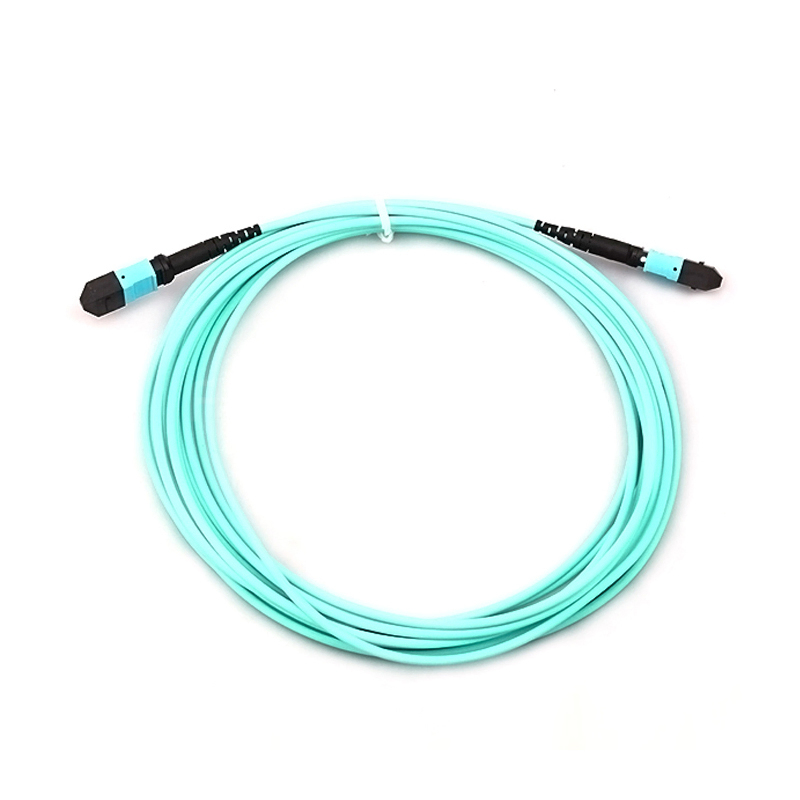

MPO-MPO Fiber Patch Cord with 40/100G Ethernet Distance 150m at 850nm and 400m at 850nm MPO Cable Assembly
MPO-MPO Fiber Patch Cord with 40/100G Ethernet Distance 150m at 850nm and 400m at 850nm MPO Cable Assembly MPO-MPO Fiber Patch Cord with 40/100G Ethernet Distance 150m at 850nm and 400m at 850nm MPO Cable Assembly MPO-MPO Fiber Patch Cord with 40/100G Ethernet Distance 150m at 850nm and 400m at 850nm MPO Cable Assembly MPO-MPO Fiber Patch Cord with 40/100G Ethernet Distance 150m at 850nm and 400m at 850nm MPO Cable Assembly MPO-MPO Fiber Patch Cord with 40/100G Ethernet Distance 150m at 850nm and 400m at 850nm MPO Cable Assembly
Kontakt

MPO-MPO Fiber Patch Cord with 40/100G Ethernet Distance 150m at 850nm and 400m at 850nm MPO Cable Assembly

Min Bestellmenge : 10 Preis : 3.2
Zertifizierung: RoHS, CE, ISO9001 Dokument: Produktbroschüre PDF

Detailinformationen
Verbindungsstruktur: Mpo-mpo Materialform: Runder Draht
Erlaubte Zugfestigkeit: <100n Fasermodus: OM4 50/125μm
10G Ethernet-Distanz: 400 m bei 850 nm Abstand des Ethernet-40/100G: 150m an 850nm
Mindestbiegungsradius: 3,0 mm Wellenlänge: 850/1300nm
Dämpfung bei 850 nm: ≤2,3 dB/km Dämpfung bei 1300 nm: ≤ 0,6 dB/km
Installations-Zugbeanspruchung: 66n Zugfestigkeit: 80/240N
Einfügedämpfung: Typisch ≤ 0,30 dB, Max ≤ 0,75 dB Renditeverlust: ≥50 dB, ≥55 dB (Elite)
Haltbarkeit: ≤0,2 dB (1000-maliges Stecken)
Hervorheben:

40/100G Ethernet Distance MPO Cable Assembly

,

150m at 850nm MPO-MPO Fiber Patch Cord

,

400m at 850nm MPO Cable Assembly

Produkt-Beschreibung

MPO-MPO Fiber Patch Cord 8/16/28/48/96 Cores Multimode OM3 50/125 10G

FiberMania supplies MTP® breakout cables in single-mode and multimode configurations, available with 12, 24, 48, and 72 fibers. These MTP® fiber cables split one 12-strand MTP® fiber optic cable into 12 individual SC cables. Fan-out style MTP® cables are available in both male and female configurations, with various lengths and fan tube diameters.

MPO-MPO Fiber Patch Cord with 40/100G Ethernet Distance 150m at 850nm and 400m at 850nm MPO Cable Assembly 0
Key Features
  • High bandwidth and low loss: Precision-polished fiber end faces with insertion loss ≤0.3dB, ensuring 40G/100G/400G high-speed transmission
  • Durability and stability: High-strength OM3/OM4 fiber with dust-proof buckle design, plug-in life >500 times
  • Plug and play: Pre-terminated design saves 90% installation time
  • Flexible configuration: Supports 12-core to 96-core customization with lengths from 0.5m to 50m
Technical Specifications
Connector MPO/MTP (Male/Female)
Fiber Mode SM(OS2) | MM(OM1/OM2/OM3/OM4/OM5)
Polishing Type PC | APC | PC
Insertion Loss Typical≤0.30dB Max≤0.75dB (Standard)
Typical≤0.15dB Max≤0.35dB (Elite)
Return Loss ≥50dB (Standard) ≥55dB (Elite)
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Fiber Count 8/12/24/48/72/96/144 Fibers
Cable Jacket PVC/OFNR/OFNP/LSZH
RoHS Compliancy Compliant
Applications
  • Data Distribution Patch Panels
  • High-Density Networking Environments
  • Plenum Spaces
  • MPO/MTP Adapter Panel Integration
  • Active Optical Network Transceiver Control
  • Optical Fiber Distribution Systems
Our Advantages
  • Versatile Fiber Options: Available in single-mode and multimode configurations
  • Multiple Fiber Counts: 12, 24, 48, or 72 fibers to suit requirements
  • Breakout Design: Splits one 12-strand MTP® cable into 12 individual SC cables
  • Fan-Out Styles: Male and female configurations available
  • Customizable Lengths: Various lengths and tube diameters for installation flexibility
Quality Testing

Our rigorous quality testing ensures reliable performance:

MPO-MPO Fiber Patch Cord with 40/100G Ethernet Distance 150m at 850nm and 400m at 850nm MPO Cable Assembly 1
  • IL and RL Testing: Verifies insertion loss and return loss for stable signal transmission
  • 3D Interferometer Testing: Ensures proper connector parameters for successful fiber connections
MPO-MPO Fiber Patch Cord with 40/100G Ethernet Distance 150m at 850nm and 400m at 850nm MPO Cable Assembly 2 MPO-MPO Fiber Patch Cord with 40/100G Ethernet Distance 150m at 850nm and 400m at 850nm MPO Cable Assembly 3
  • End-Face Inspection: Examines connector end faces for scratches or contamination to ensure network reliability
Production Equipment
MPO-MPO Fiber Patch Cord with 40/100G Ethernet Distance 150m at 850nm and 400m at 850nm MPO Cable Assembly 4
Certifications
MPO-MPO Fiber Patch Cord with 40/100G Ethernet Distance 150m at 850nm and 400m at 850nm MPO Cable Assembly 5
Packaging & Shipping
MPO-MPO Fiber Patch Cord with 40/100G Ethernet Distance 150m at 850nm and 400m at 850nm MPO Cable Assembly 6
Frequently Asked Questions
Q1: What is the warranty of FiberMania's fiber patch cord?

A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.

Q2: Is it possible to customize our brand information on your fiber cable?

A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.

Q3: Can you do 3D interferometer test?

A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.

Q4: What is your MOQ of your products?

A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may consider stock the bulk cable with us for your urgent order production.

Q5: Are free samples available from you?

A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under 50 US dollars.
